Labeler for self-adhesive label EU-3000-120

from 580,000.00 *

*This price is not binding and depends on the configuration of the product.

Labeler for self-adhesive segmented label. EU-3000-120. Productivity up to 3000 labels per hour. Possibility to work with labels of any length and height without installation of changeover sets. Bottle volumes: from 0.2 up to 10 liters. Maximum height of label: 120 mm

Product milk / fermented milk drinks / water / sparkling water / drinks / beer / kvass / condensed milk / vinegar
Type of packaging PET/glass
Productivity 3000 bottle/h
Functional labeling
Type automatic

Available on backorder

Categories: , , , , ,

*This price is not binding and depends on the configuration of the product.

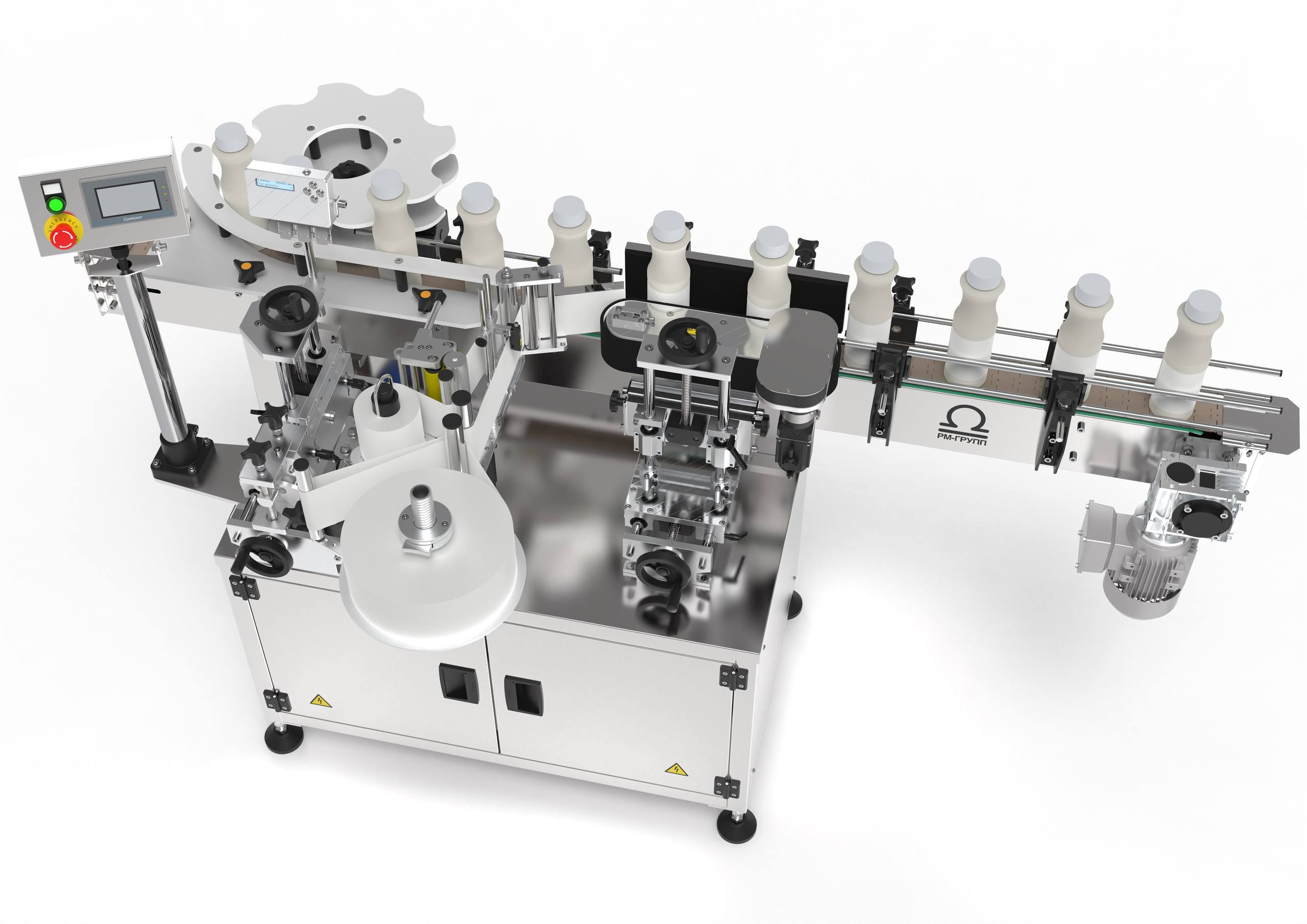

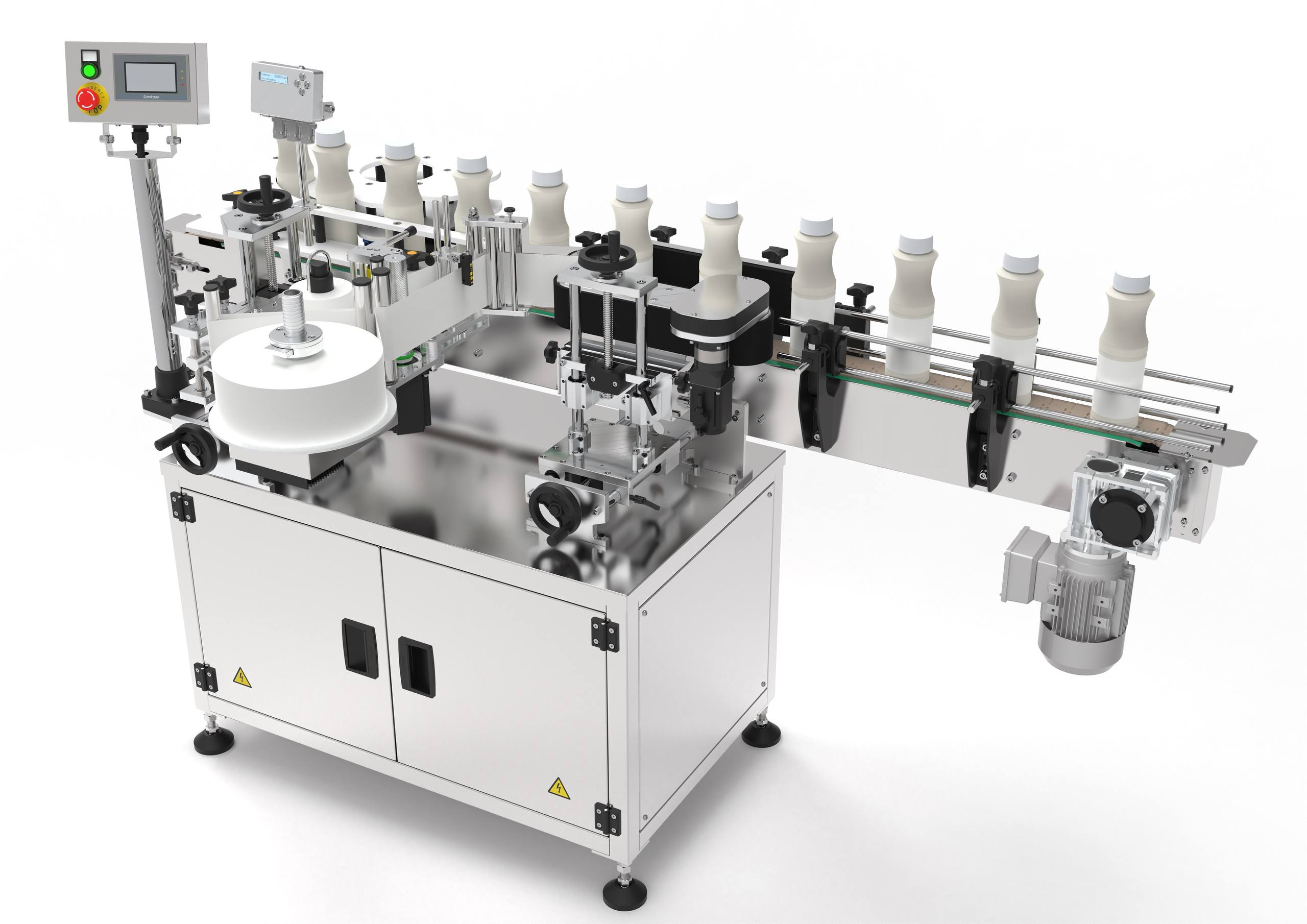

The labeler is designed to stick self-adhesive labels to the bottles moving along the conveyor. It can stick labels on bottles, flacons, jars, boxes, mass package. It can be manufactured for side or top sticking of labels, as well as in the versions for left- and right-side location of the equipment.

If the customer has own conveyor system, the automatic labeler can be embedded into the existing system.

The process of sticking labels is fully automated and does not require the presence of an operator.

Distinctive features:

  • Following the signal of the optical sensor of bottle availability, the applicator separates the label with the help of the label separation mechanical unit
  • Label is stuck to the bottle, pressed and smoothed out by the running roller along the whole sticking surface
  • When sticking the wrap-around label, additional rolling with the help of the rolling conveyor takes place
Weight 70 kg
Dimensions 1,200 × 1,100 × 1,300 mm
Supply voltage, V

220

Power consumption, kW/h

0.3

Air pressure, MPa

0.6 – 0.8

Air consumption, l/min

100

Productivity, bottle/h

up to 3000

Number of operators, persons

1

Control Panel

touch LCD display

Loading / unloading

automatic

Warranty

12 months

Equipment certified

yes

Number of sticky labels, pcs/h

3000

Number of rolls, pcs

1

Applicable film

self-adhesive

Roll diameter, mm

up to 300

Label length, mm

up to 1000

Label width, mm

50 – 120

Label positioning accuracy, mm

±2

Roll inner diameter, mm

45 – 76

Conveyor belt height, mm

855 – 1100
